SolarEdge Systems

SolarEdge was the first to successfully commercialize power optimizers, a device that offers module-level maximum power point tracking (MPPT), before feeding back the electricity generated into a central inverter. Their central inverters have a standard 12 year warranty, and typically fail after about 13 years. All SolarCal systems using SolarEdge include an extended, 25 year warranty. When your inverter eventually does fail, you will receive a brand new one.

Power Optimizers

The Power Optimizer is a DC/DC converter which is connected by installers to each solar module, turning them into smart modules. Optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually, and sending performance data to the monitoring platform for cost-effective module-level maintenance.

Each Power Optimizer is equipped with the unique SafeDC™ feature, which automatically reduces modules' DC voltage to a safe level whenever the inverter or grid power is shut down (unless the inverter is operating in backup mode).

Optimizers mitigate module mismatch-loss from manufacturing tolerance, partial shading, and aging. They deliver up to 99.5% peak efficiency.

25 Year Warranty
Download Datasheet

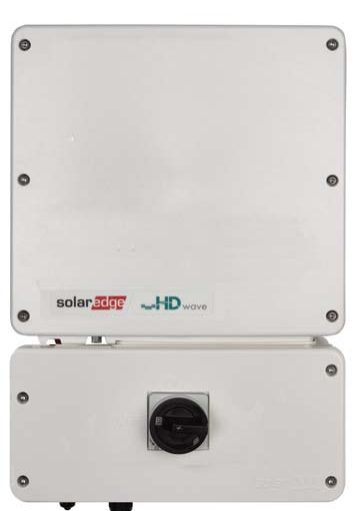

HD-Wave Inverter

Because Maximum Power Point Tracking and voltage management are handled separately for each solar module by the Power Optimizer, the single phase inverter is only responsible for DC to AC inversion. Consequently, it is a simpler, more cost effective, more reliable solar inverter. The fixed string voltage ensures operation at the highest efficiency at all times independent of string length and temperature.

99% weighted efficiency
Up to 200% oversizing allowed
High reliability due to lower heat dissipation
Built-in module-level monitoring
Communication via Ethernet, or wireless connectivity
Suitable for outdoor and indoor installations
Integrated arc fault protection and rapid shutdown

12 year Standard Warranty
All SolarCal systems include an extended 25 Year Warranty
Download Datasheet


Energy Hub Inverter

The Energy Hub is a next generation home backup solution for higher efficiency and greater flexibility. With this inverter you will be ready for battery and EV charging with built-in energy monitoring, and an overall flexible system to meet future energy storage needs.

When paired and an LG-16 or Energy Bank battery and the SolarEdge Backup Interface, you have a DC-coupled solution to keep the whole home on, even when the grid is down. SolarEdge's EV Charger can be installed directly into the Energy Hub.

DC-coupled solution for high system efficiency
(No additional conversions from AC to DC and back to AC)
Up to 200% DC oversizing for greater energy harvest
Module-level power optimization
Discharge battery according to local times-of-use rates
One app monitors production, storage and usage
Preselect battery charge levels in the event of unplanned outages
Remote diagnostics and firmware upgrades
Suitable for indoor and outdoor installation
One platform that's battery-ready, electric vehicle-ready, and future-ready.

12 year Standard Warranty
All SolarCal systems include an extended 25 Year Warranty
Download Datasheet

SolarEdge-Energy Hub
